Hittite HMC-T2100 10MHz-20GHz Signal Generator ~ Tested in Good condition.
Regular price
$3,780.00 USD
Couldn't load pickup availability
Hittite HMC-T2100 10MHz-20GHz Signal Generator.
Condition is Used.
Shipped with Economy Shipping.
The unit passes spec for phase noise, spurious, harmonics, dynamic range etc. but it fails a little at max power spec and puts out 16dbm at 20 GHz where spec is 19dbm or so,
But overall high power is good for such a tiny package !

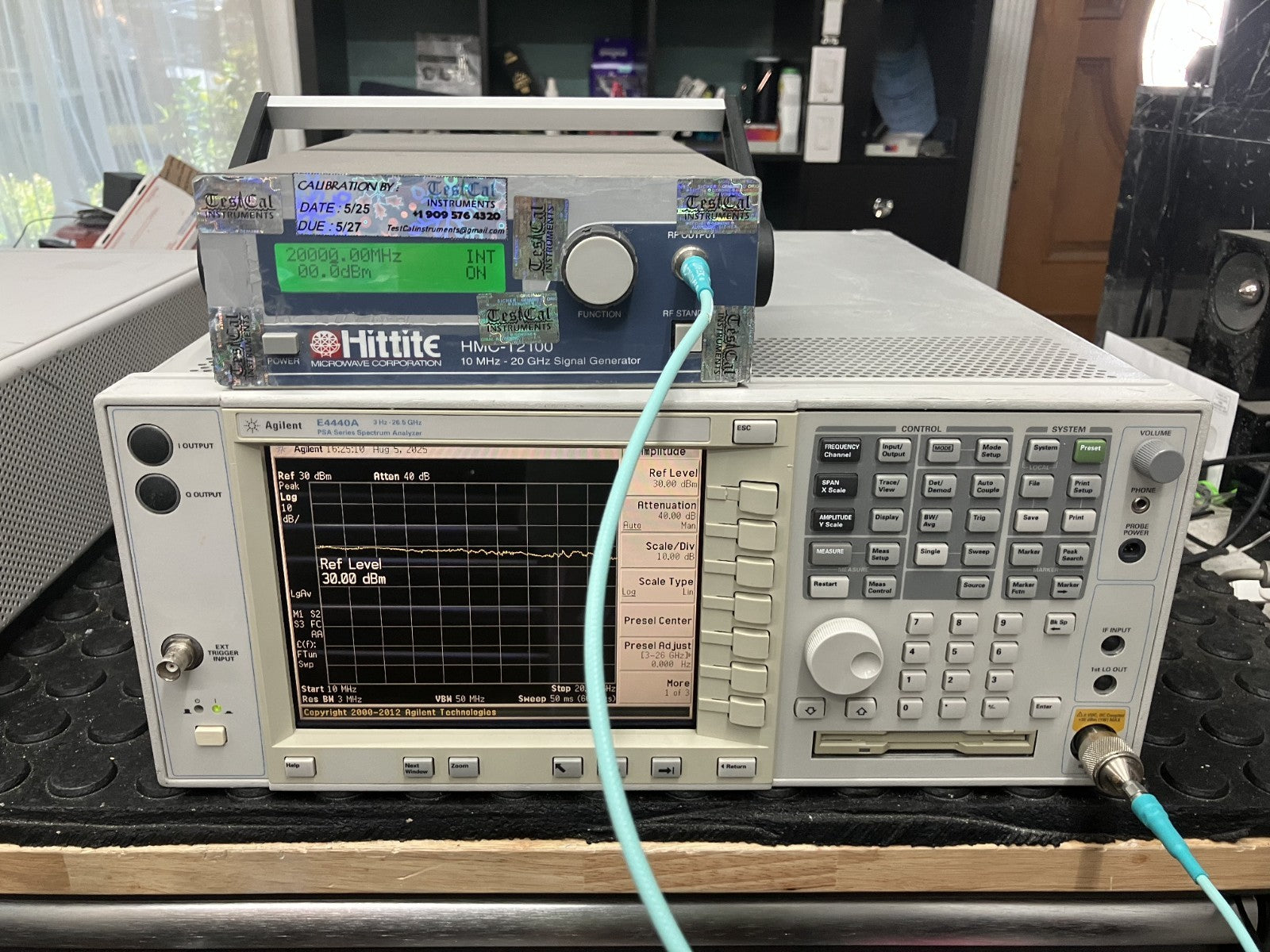

And there is a high roll-off where it's dead on accurate at the low frequency approx. 5 DB low at its worst at 20 GHz with a gradual slope off, I'll later add a swept image on trace hold on a spec an,
This weighs about 5lbs or so and is so small and easy to transport!
It is a cw signal generator and very simple and easy to navigate unlike our bnc equivalent that is much harder to figure out and navigate on,
The dynamic range gets -25db to +25dbm at its best ! So make sure to use a 10DB attenuator when using this beast!
The harmonics I want to say are 30 DB max spec and that's as good as the Agilent e4438c models.
The phase noise is good for what you'd expect in a tiny package like this, and it outperforms the 83752b in every cw spec!
Comes with a partial calibration cert and sticker for 2 yr interval
