HP 8593E Spectrum Noise Figure Analyzer NFA 26.5 Ghz Cal'd Tracking Gen 119

Firstly the CRT pics didn't come out good at all! It looks 10 times better in person guaranteed! I'll try to take some new shots. CRT is excellent and grade A- not far off from new!(Add 200$ for a brand new one but it doesn't need it)

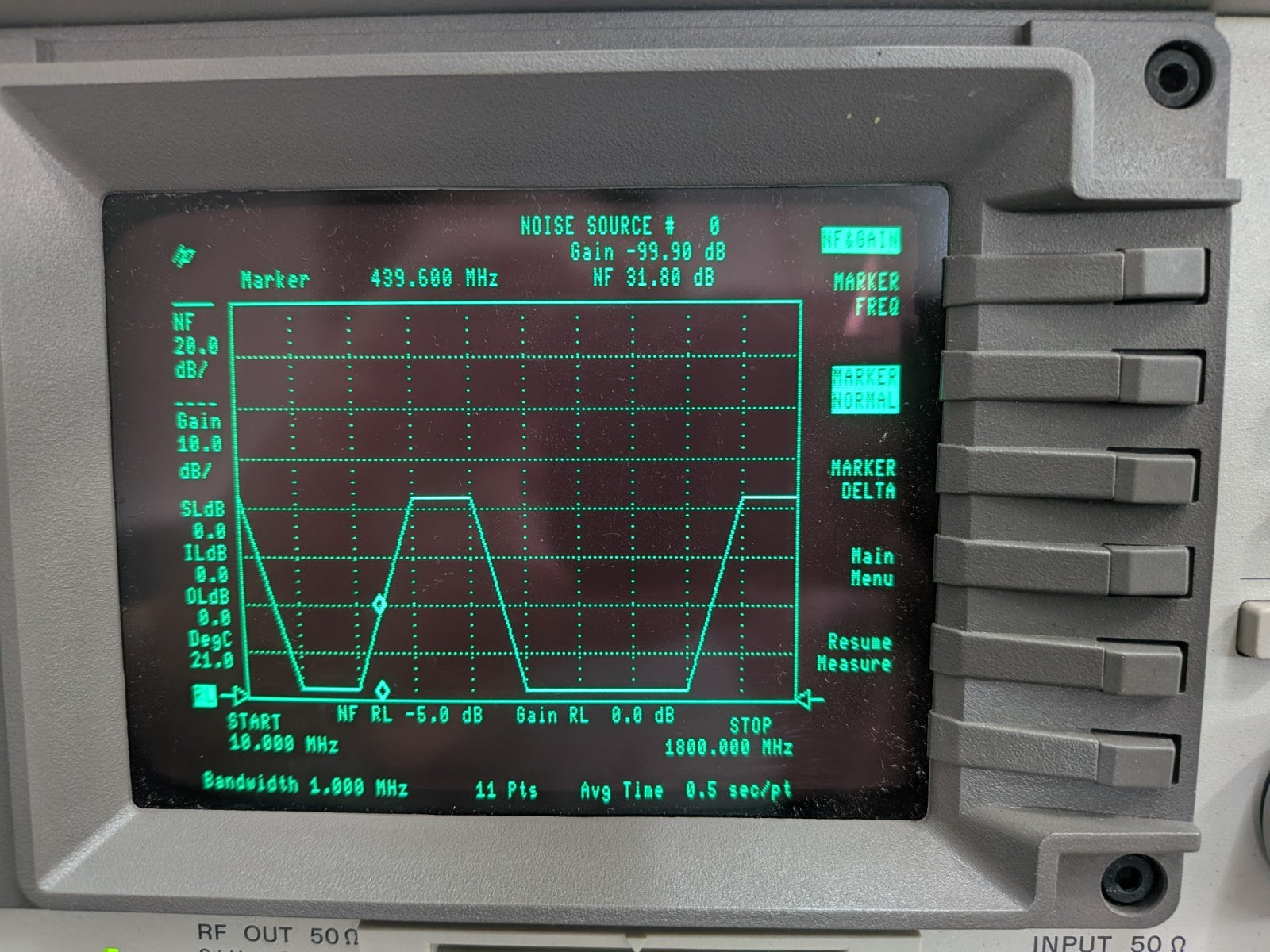

Comes with options 010 tracking generator, 004stable timebase, 043 , 130 narrow rbw, 26  extended freq range, and the coveted 119 stable switched 28v support for noise sources and the coveted ultra rare noise figure measurement personality  loaded on that converts this to a full fledged NFA!!!

Use it as it is with a noise source of your choosing  or add you own preamp to the equation for improved danl(noise floor)!

It also includes now 101 ultra fast time domain sweeps .

102 am FM demod is not included only because it had to be removed to fit the 119 we installed. If you need 102 you will need to tell us to remove either 119 or 101. Obviously you are going to want to keep the tg and 130!

Or purchase a nice low noise preamp from us for an Additional 300$  10 MHz to 18 GHz rated.

Or buy a 10 MHz to 18 GHz noise source from us as well  for 300$ thats designed for this system using the 28v switched connection.

I have two or three  of these. This ones got 43 not 21 so its parallel and serial interfaces with keyboard.

This ones also got 26 the upgraded 26.9 ghz extension and ytf with n or  3.5 mm sma input. As well as narrow res bw and super stable timebase. Also the tracking gen which is the most expensive option .let us know if you don't need the TG. We can likely reduce it by 1000$ if we have stock .

107 and 105 have been removed but if you need gated sweeps we can reinstall 105 for no extra fee.

Its maxed out with all everyones fav options!

.

. I have gate delay option as well.111 i think. 102 or 103 can be installed for an extra 100$ or 300$ respectively but would need to remove opt 101.

Comes cald w cert/sticker for your choice of 1 or 2 yr interval.

Full Cal data can be included for an extra 300$ using our custom programmed automated system.

30 day warranty. We would repair any issues. Its your responsibility to ship it to me and mine to repair it and ship it back.
