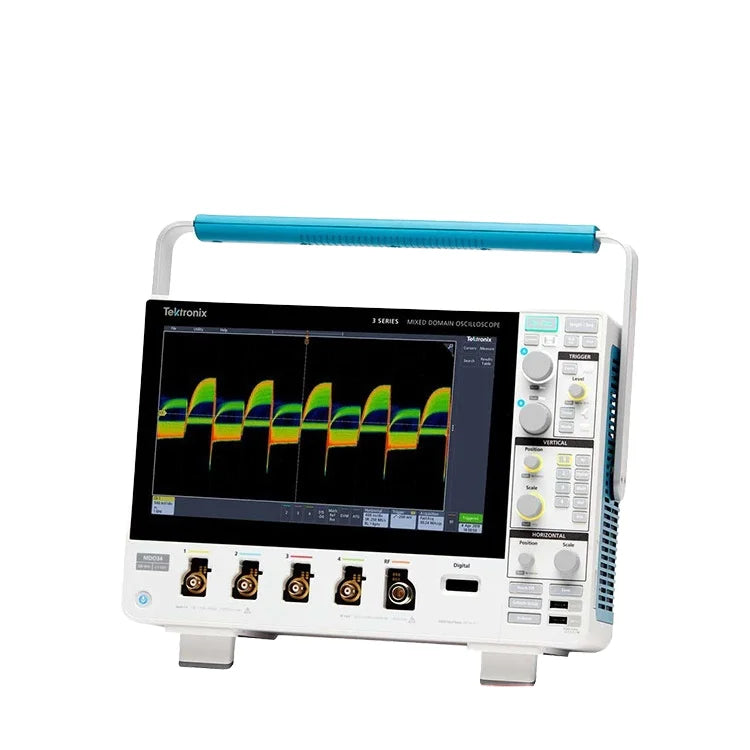

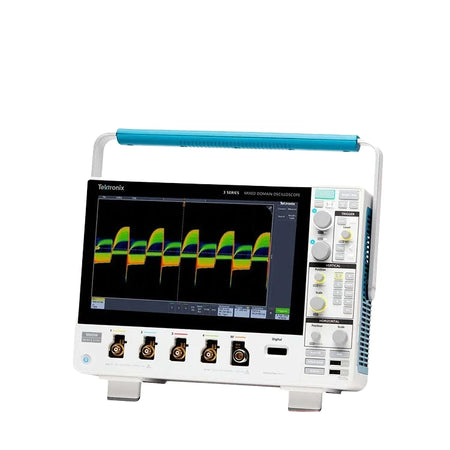

Tektronix MDO32 MDO34 Hybrid Domain Oscilloscope 2/4 Channels with 1G Bandwidth Custom OEM Supported for Test Instruments

In stock
$49,609.00 USD
Measurement Range
model number

Product details

  • Vendor XG eqpt
Description Shipping information Reviews


3 Series MDO With Tektronix's large display screen among similar products,Improved Low-Level Signal Measurement Accuracy and Industry-Leading Probe Performance,Setting New Standards for Desktop Oscilloscopes.3 Series Built-in Unique,Real Hardware Spectrum Analyzer,Has excellent RF testing performance and guaranteed RF technical specifications,Whether you are testing IoT Baseband Design,Or is it only for simple uses? EMI diagnosis,We can meet your needs.

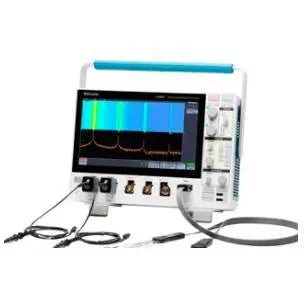

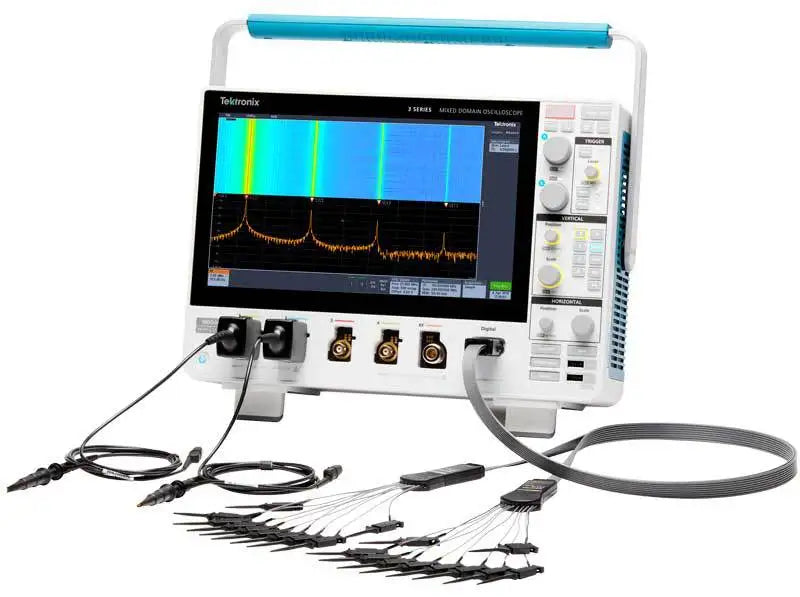

As a key component in measuring signal paths,Oscilloscope Probecannot be ignored.In the process of purchasing 3 Series MDO Time,You will receive a high-quality probe for free in the industry.Relying on the industry's best oscilloscope loads (3.9 pF),TPP Series Probe Will Definitely Become Your Everyday Portable Probe.



Micro Signal Measurement Accuracy Improved by Up to 40%

When measuring small signals,To achieve better measurement accuracy,Reducing the instrument's background noise is crucial.3 Series MDO The new front-end design used in this product helps you improve noise measurement accuracy by up to 40%.When evaluating an oscilloscope,Please make sure to carefully check the random noise technical specifications of the oscilloscope.Oscilloscopes vary from one another,And not all oscilloscope manufacturers will test and publish their random noise specifications.



Specification Summary

Input channel

  • 2 Or 4 Strip Simulation
  • 16 Number1
  • 1 Taiwan Spectrum Analyzer

Bandwidth1

  • 100 MHz,200 MHz,350 MHz,500 MHz Or 1 GHz

Sampling Rate

  • On the analog channel it is 5 GS/s(1 GHz Model),2.5 GS(All other models)
  • Highest on digital channels 8.25 GS/s(121 ps Resolution)

Record length

  • On all channels 10 M Point

Spectrum Analyzer1

  • 1 GHz(Standard configuration);3 GHz(Optional)

Signal Generator1

  • Arbitrary Waveform,Sine wave,Square Wave,pulse,Slope,Triangle Wave,DC Level,Gauss,Lorenz,The index has risen/Lower Reduction,Sin(x)/x,random noise,Half arrow,Cardiac

Digital Voltmeter2

  • 4 Bit AC RMS,DC and AC+DC RMS Voltage Measurement

Trigger Frequency Counter2

  • 5 Frequency Measurement

Advanced Analysis1

  • Automatic power measurement

Protocol Support1

  • I2C,SPI
  • RS-232,RS-422,RS-485,UART
  • CAN, CAN FD, LIN, FlexRay
  • SENT
  • MIL-STD-1553,ARINC 429
  • I2S, LJ, RJ, TDM
  • USB 2.0

Monitor

  • 11.6 Inches(295 Mm)
  • High Definition Color (1920 x 1080) Capacitive touch screen

Weight

  • 11.7 Pound(5.3 Kilogram)







Model Analog Bandwidth Simulation Channel Number of channels Sampling Rate Record length Spectrum Analyzer Quotation Configure And Quote
MDO32

100 MHz - 1 GHz

2

16(Optional)

Gundam 5 GS/s

10 M

Minimum 3 GHz(Optional)

 US $5,250 Configuration and Quote
MDO34

100 MHz - 1 GHz

 4

16(Optional)

Gundam 5 GS/s

10 M

Minimum 3 GHz(Optional)

 US $6,310

Specification
item value
Place of Origin SE
Brand Name Megger
Color White
Warranty 1 years
Material Abs
Power 5w
